DO型是一种常见的浮动油封设计，由两个类锥型截面的密封环和两个O型圈组成。
优点：
---设计可靠
---有效封隔外界的灰尘、水、泥污、并保护内部的润滑油和润滑脂
---成本低、效率高
---安装定位简单
---更长的使用寿命
---自动补偿轴的偏心
适用场合
浮动油封用途广泛，通常被推荐使用于速度慢的、对润滑可靠性和寿命要求高的场合。例如：它能用于：
矿山设备：重型卡车、电铲、钻机、采煤机、刮板输送机、筛选机、破碎机等。
工程机械：液压挖掘机、推土机。
农业机械：轮式拖拉机、耕地机、挖沟机、割草机。
材质：
意大利GNL公司浮动油封金属环的材料通常是符合UNI3097标准的合金钢100Cr6,硬度为HRC58—HRC63；橡胶圈的材料通常为丁腈橡胶。
工作条件：
工作压力：≤3 bar
工作温度：-30---+110 °C(NBR) -25---+200 °C(FPM)
表面速度：≤3m/s
表面粗糙度:与密封环接触的表面粗糙度建议为Ra4.0-6.5。
安装指导：
---彻底清洗腔体件，清除任何残留物，沟槽的所有棱边必须光滑。
---只能在安装前打开浮动油封的原始包装，取出密封件。
---检查O型环的位置，不能扭曲变形，把密封件的一半放入腔体的入口，均匀的压入腔内，可用无水乙醇湿润沟槽和橡胶圈以便于安装，严禁使用润滑油或者润滑脂等辅助安装。
---检查安装后沟槽外表面和密封面是否平行，最大偏差为1MM,O型环在沟槽中不能有任何起伏和突出。
---在将两边密封环压紧，清洁密封面，并在密封面上用无棉绒的抹布涂一层薄油膜。
---完成安装后检查间隙，计算压缩量。
备注：如果密封组件在维修时被分开，即使还未达到磨损极限，也必须重新安装新的密封组件。因为运行之后接触面在较短的时间内会沿一个共同的轨迹运行，再重新安装时无法保证安装在原位置，密封面的磨损路径不再匹配，就会发生漏油，直到密封面在此磨合为止。

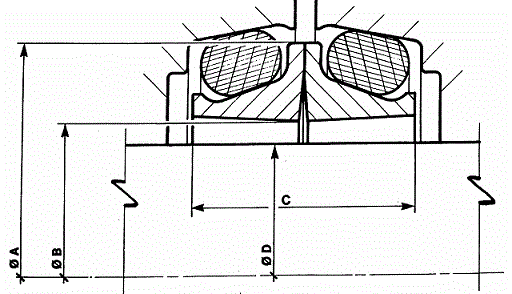

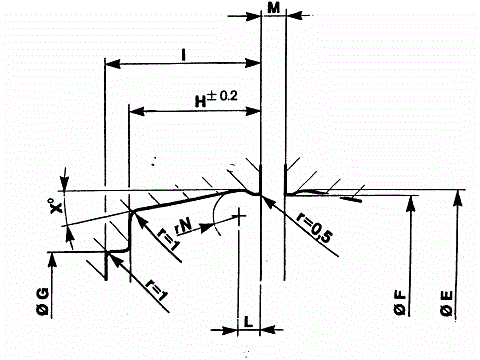

| P/N |
A |
B |
C |
D-Max |
M |
E |
F |
G |
H |
I |
L |
N |
X° |
Tol+- |
| 5200 |
45.0 |
34.0 |
14.0 |
30.0 |
* |
47.0 |
46.5 |
42.0 |
6.5 |
8.0 |
1.0 |
1.0 |
10.0 |
0.10 |
| 5210 |
50.0 |
39.0 |
14.0 |
35.0 |
* |
52.0 |
51.5 |
46.0 |
6.5 |
8.0 |
1.0 |
1.0 |
10.0 |
0.10 |
| 4300 |
51.0 |
38.0 |
20.4 |
35.0 |
* |
53.7 |
53.0 |
46.0 |
9.0 |
11.0 |
1.8 |
2.0 |
10.0 |
0.10 |
| 4700 |
52.0 |
40.0 |
20.0 |
36.0 |
* |
55.0 |
54.2 |
46.0 |
9.0 |
11.0 |
1.0 |
1.0 |
15.0 |
0.10 |
| 5240 |
58.0 |
48.0 |
14.4 |
44.0 |
* |
59.9 |
59.4 |
55.0 |
6.3 |
8.0 |
1.5 |
1.7 |
10.0 |
0.10 |
| 4960 |
58.0 |
43.0 |
24.0 |
39.0 |
* |
61.6 |
60.8 |
53.4 |
10.0 |
12.0 |
1.8 |
2.5 |
10.0 |
0.10 |
| 4820 |
58.0 |
45.0 |
21.6 |
41.0 |
* |
61.6 |
61.0 |
54.0 |
10.5 |
12.5 |
1.8 |
2.5 |
10.0 |
0.10 |
| 4200 |
59.0 |
46.0 |
20.0 |
42.0 |
* |
61.6 |
61.2 |
53.0 |
9.0 |
11.0 |
2.0 |
2.5 |
12.0 |
0.10 |
| 5750 |
62.0 |
48.0 |
26.0 |
45.0 |
* |
68.0 |
67.2 |
58.0 |
12.0 |
14.0 |
2.0 |
3.0 |
10.0 |
0.10 |
| 0495 |
70.0 |
55.5 |
22.0 |
52.0 |
* |
73.8 |
73.1 |
65.5 |
10.0 |
11.5 |
2.4 |
5.0 |
10.0 |
0.10 |
| 5740 |
70.0 |
56.0 |
26.0 |
53.0 |
* |
76.0 |
75.2 |
66.0 |
12.0 |
14.0 |
2.0 |
2.5 |
10.0 |
0.10 |
| 0440 |
73.0 |
61.0 |
17.6 |
58.0 |
* |
75.8 |
75.5 |
66.8 |
6.5 |
7.5 |
1.0 |
1.4 |
10.0 |
0.10 |
| 4320 |
74.0 |
60.0 |
20.6 |
57.0 |
* |
78.4 |
77.4 |
70.0 |
9.0 |
11.0 |
1.9 |
2.5 |
12.0 |
0.10 |
| 4850 |
75.0 |
58.0 |
27.0 |
53.0 |
* |
79.2 |
78.6 |
66.0 |
12.0 |
14.0 |
2.0 |
2.5 |
12.3 |
0.10 |
| 5680 |
78.0 |
64.0 |
25.0 |
61.0 |
* |
84.6 |
83.8 |
74.0 |
12.5 |
14.5 |
2.0 |
3.0 |
12.0 |
0.10 |
| 3107 |
82.5 |
63.5 |
31.8 |
60.5 |
* |
86.5 |
85.7 |
73.5 |
15.2 |
16.8 |
3.5 |
4.8 |
10.0 |
0.10 |
| 5630 |
84.0 |
69.0 |
24.0 |
66.0 |
* |
89.6 |
88.6 |
78.5 |
11.0 |
13.0 |
1.9 |
3.0 |
12.0 |
0.10 |
| 5840 |
84.0 |
71.0 |
20.0 |
68.0 |
* |
87.4 |
86.7 |
80.8 |
8.5 |
10.0 |
1.8 |
2.0 |
10.0 |
0.10 |
| 5590 |
86.5 |
67.5 |
31.8 |
64.0 |
* |
91.0 |
90.0 |
78.0 |
14.5 |
17.0 |
2.8 |
5.0 |
10.0 |
0.10 |
| 4895 |
86.5 |
74.0 |
22.5 |
70.0 |
* |
91.4 |
90.7 |
80.0 |
9.5 |
11.5 |
2.0 |
3.0 |
10.0 |
0.10 |
| 3767 |
87.6 |
77.5 |
13.6 |
75.9 |
* |
90.7 |
90.2 |
89.5 |
7.5 |
8.0 |
1.4 |
1.5 |
15.0 |
0.10 |
| 5480 |
88.5 |
73.5 |
20.4 |
70.0 |
* |
90.2 |
89.4 |
82.0 |
12.7 |
14.3 |
2.2 |
2.8 |
10.0 |
0.10 |
| 5850 |
89.0 |
69.0 |
24.0 |
66.0 |
* |
92.5 |
91.5 |
83.0 |
11.0 |
13.5 |
2.8 |
5.0 |
10.0 |
0.10 |
| 4870 |
90.0 |
70.0 |
29.0 |
65.0 |
* |
95.5 |
94.7 |
84.0 |
13.5 |
15.5 |
2.0 |
3.0 |
12.0 |
0.10 |
| 3307 |
91.9 |
73.1 |
31.8 |
70.1 |
* |
96.0 |
95.2 |
83.0 |
15.2 |
16.8 |
3.5 |
4.8 |
10.0 |
0.10 |
| 3750 |
92.0 |
72.5 |
35.6 |
70.1 |
* |
96.0 |
95.2 |
83.0 |
15.2 |
20.9 |
3.5 |
4.8 |
10.0 |
0.10 |
| 5610 |
92.0 |
73.0 |
31.8 |
70.0 |
* |
96.2 |
95.4 |
84.0 |
15.0 |
17.0 |
3.0 |
4.0 |
10.0 |
0.10 |
| 4900 |
94.0 |
75.0 |
29.0 |
73.0 |
* |
101.4 |
100.6 |
89.0 |
14.5 |
16.5 |
2.0 |
3.0 |
10.0 |
0.10 |
| 5825 |
98.0 |
81.0 |
28.0 |
78.0 |
* |
102.3 |
101.3 |
91.0 |
12.5 |
14.5 |
2.8 |
5.0 |
10.0 |
0.10 |
| 4930 |
100.0 |
80.0 |
30.0 |
76.0 |
* |
104.1 |
103.3 |
93.0 |
15.0 |
18.0 |
2.3 |
2.5 |
10.0 |
0.10 |
| 3770 |
102.0 |
82.5 |
35.6 |
80.5 |
* |
107.3 |
106.5 |
94.3 |
15.2 |
20.9 |
3.5 |
4.8 |
10.0 |
0.10 |
| 3710 |
105.0 |
90.0 |
26.0 |
87.4 |
* |
107.3 |
106.7 |
100.4 |
11.8 |
14.2 |
2.9 |
2.8 |
10.0 |
0.10 |
| 4945 |
106.5 |
94.0 |
23.0 |
90.0 |
* |
111.6 |
110.8 |
102.0 |
9.5 |
11.5 |
2.0 |
3.0 |
10.0 |
0.10 |
| 3760 |
106.8 |
96.5 |
13.6 |
94.9 |
* |
109.7 |
109.2 |
108.5 |
7.5 |
8.0 |
1.4 |
1.5 |
15.0 |
0.10 |
| 5670 |
109.0 |
90.0 |
32.0 |
86.0 |
* |
112.5 |
111.7 |
104.0 |
14.5 |
17.0 |
3.2 |
3.0 |
12.0 |
0.10 |
| 3503 |
109.4 |
90.4 |
31.8 |
87.4 |
* |
113.4 |
112.7 |
100.4 |
15.2 |
16.8 |
3.5 |
4.8 |
10.0 |
0.10 |
| 3742 |
109.5 |
90.4 |
35.6 |
88.5 |
* |
113.4 |
112.7 |
100.4 |
15.2 |
20.9 |
3.5 |
4.8 |
10.0 |
0.10 |
| 4885 |
109.5 |
92.0 |
22.0 |
88.0 |
* |
113.8 |
113.0 |
105.0 |
9.5 |
11.5 |
2.0 |
3.0 |
10.0 |
0.10 |
| 5700 |
114.0 |
95.0 |
32.0 |
91.0 |
* |
120.0 |
119.2 |
107.0 |
15.0 |
17.0 |
2.5 |
3.0 |
12.0 |
0.10 |
| 4865 |
117.0 |
104.0 |
22.0 |
100.0 |
* |
121.0 |
120.2 |
107.0 |
9.5 |
11.5 |
2.0 |
3.0 |
10.0 |
0.10 |
| 3310 |
119.1 |
100.0 |
31.8 |
97.0 |
* |
123.0 |
122.2 |
110.0 |
15.2 |
16.8 |
3.5 |
4.8 |
10.0 |
0.10 |
| 3606 |
119.1 |
100.1 |
31.8 |
97.0 |
* |
123.0 |
122.2 |
110.0 |
15.2 |
16.8 |
3.5 |
4.8 |
10.0 |
0.10 |
| 1800 |
122.0 |
103.0 |
32.0 |
99.0 |
* |
127.2 |
126.2 |
115.0 |
15.5 |
17.5 |
2.5 |
3.0 |
12.0 |
0.10 |
| 4855 |
122.5 |
104.0 |
22.5 |
100.0 |
* |
125.5 |
125.1 |
117.5 |
9.5 |
11.5 |
2.0 |
3.0 |
10.0 |
0.10 |
| 8000 |
125.0 |
104.0 |
28.0 |
100.0 |
* |
128.5 |
127.5 |
117.0 |
12.5 |
14.0 |
2.8 |
5.0 |
10.0 |
0.10 |
| 0485 |
125.0 |
107.0 |
24.0 |
103.0 |
* |
130.4 |
129.4 |
119.5 |
11.0 |
13.5 |
2.8 |
5.0 |
10.0 |
0.10 |
| 5500 |
128.0 |
110.0 |
32.0 |
106.0 |
* |
133.0 |
132.0 |
121.0 |
14.5 |
17.0 |
2.5 |
3.0 |
12.0 |
0.10 |
| 5442 |
128.0 |
111.0 |
22.0 |
107.0 |
* |
132.5 |
132.0 |
123.0 |
10.6 |
12.3 |
2.8 |
3.0 |
10.0 |
0.10 |
| 4840 |
132.0 |
109.0 |
32.0 |
104.0 |
* |
136.5 |
135.5 |
124.0 |
15.5 |
17.5 |
2.5 |
3.0 |
10.0 |
0.10 |
| 4880 |
137.0 |
115.0 |
31.0 |
110.0 |
* |
141.8 |
140.8 |
130.0 |
14.5 |
16.5 |
2.5 |
3.0 |
10.0 |
0.10 |
| 5815 |
138.0 |
117.0 |
31.8 |
114.0 |
* |
142.5 |
141.5 |
132.0 |
14.5 |
17.0 |
2.8 |
5.0 |
10.0 |
0.10 |
| 4710 |
139.0 |
120.0 |
31.8 |
115.0 |
* |
143.0 |
142.0 |
129.3 |
14.3 |
17.4 |
3.0 |
5.4 |
10.0 |
0.10 |
| 5549 |
139.0 |
126.5 |
26.8 |
123.5 |
* |
143.8 |
143.1 |
136.9 |
11.8 |
14.2 |
2.9 |
2.8 |
10.0 |
0.10 |
| 5800 |
140.0 |
117.0 |
28.0 |
113.0 |
* |
142.5 |
141.5 |
132.0 |
12.5 |
14.0 |
2.8 |
5.0 |
10.0 |
0.10 |
| 5460 |
141.0 |
120.0 |
31.8 |
117.0 |
* |
144.0 |
143.0 |
138.0 |
14.5 |
17.5 |
2.8 |
5.0 |
10.0 |
0.10 |
| 0450 |
141.0 |
127.0 |
29.0 |
123.0 |
* |
147.0 |
146.0 |
137.0 |
13.0 |
15.5 |
2.8 |
5.0 |
10.0 |
0.10 |
| 4925 |
141.0 |
124.0 |
22.0 |
120.0 |
* |
146.4 |
145.3 |
136.0 |
10.6 |
12.3 |
2.8 |
3.0 |
9.5 |
0.10 |
| 3850 |
141.2 |
127.0 |
25.4 |
124.0 |
* |
143.8 |
143.1 |
136.9 |
11.8 |
14.2 |
2.9 |
2.8 |
10.0 |
0.10 |
| 5640 |
142.0 |
120.0 |
38.0 |
116.0 |
* |
149.0 |
148.0 |
133.0 |
17.0 |
19.0 |
2.5 |
3.0 |
10.0 |
0.10 |
| 4220 |
144.1 |
125.0 |
31.8 |
120.0 |
* |
148.5 |
147.5 |
136.0 |
14.3 |
17.4 |
3.0 |
5.0 |
10.0 |
0.10 |
| 3515 |
146.0 |
126.0 |
31.8 |
123.0 |
* |
150.0 |
149.2 |
137.0 |
15.2 |
16.8 |
3.5 |
4.8 |
10.0 |
0.10 |
| 3700 |
146.0 |
127.0 |
31.8 |
124.0 |
* |
150.0 |
149.2 |
137.0 |
15.2 |
16.8 |
3.5 |
4.8 |
10.0 |
0.10 |
| 4910 |
150.5 |
130.0 |
32.0 |
125.0 |
* |
155.6 |
154.6 |
144.0 |
14.5 |
16.5 |
2.5 |
5.0 |
10.0 |
0.10 |
| 5730 |
152.0 |
130.0 |
38.5 |
125.0 |
* |
159.0 |
158.0 |
144.0 |
18.5 |
20.5 |
2.5 |
3.0 |
10.0 |
0.10 |
| 3840 |
156.9 |
142.7 |
25.4 |
139.7 |
* |
159.7 |
158.9 |
152.1 |
11.8 |
14.2 |
2.9 |
2.8 |
10.0 |
0.10 |
| 5450 |
160.0 |
143.0 |
27.0 |
138.0 |
* |
164.0 |
163.0 |
154.0 |
12.0 |
14.5 |
2.8 |
5.0 |
10.0 |
0.10 |
| 5540 |
167.0 |
147.0 |
28.0 |
142.0 |
* |
171.0 |
170.0 |
160.0 |
13.0 |
15.5 |
2.8 |
5.0 |
10.0 |
0.10 |
| 5595 |
168.0 |
146.0 |
38.0 |
143.0 |
* |
176.8 |
175.9 |
159.0 |
18.0 |
20.5 |
3.0 |
6.5 |
10.0 |
0.10 |
| 0445 |
168.0 |
154.0 |
27.0 |
150.0 |
* |
171.0 |
170.0 |
162.5 |
12.0 |
14.5 |
2.3 |
3.0 |
10.0 |
0.10 |
| 3830 |
168.1 |
153.9 |
25.4 |
150.9 |
* |
171.0 |
170.2 |
164.0 |
11.8 |
14.2 |
2.9 |
2.8 |
10.0 |
0.10 |
| 0490 |
169.0 |
154.0 |
22.0 |
150.0 |
* |
174.5 |
173.5 |
166.0 |
9.2 |
11.0 |
2.3 |
3.0 |
10.0 |
0.10 |
| 4810 |
170.0 |
148.0 |
31.0 |
142.0 |
* |
175.6 |
174.6 |
164.0 |
15.0 |
17.0 |
2.5 |
3.0 |
10.0 |
0.10 |
| 0425 |
170.0 |
154.0 |
21.0 |
150.0 |
* |
175.1 |
174.1 |
167.0 |
9.2 |
10.0 |
2.3 |
3.0 |
10.0 |
0.10 |
| 4350 |
171.5 |
152.0 |
32.0 |
149.0 |
* |
175.4 |
174.7 |
162.5 |
15.2 |
16.8 |
3.5 |
4.8 |
10.0 |
0.10 |
| 0435 |
171.5 |
153.0 |
28.0 |
149.0 |
* |
176.3 |
175.3 |
164.5 |
12.5 |
14.5 |
2.8 |
5.0 |
10.0 |
0.10 |
| 3120 |
171.7 |
146.3 |
38.0 |
143.3 |
* |
176.8 |
175.9 |
158.9 |
18.4 |
20.3 |
3.7 |
6.3 |
10.0 |
0.10 |
| 5620 |
172.0 |
150.0 |
40.0 |
147.0 |
* |
179.0 |
178.0 |
165.0 |
18.0 |
20.0 |
2.5 |
2.0 |
10.0 |
0.15 |
| 0475 |
173.5 |
154.0 |
31.8 |
150.0 |
* |
178.0 |
177.0 |
166.0 |
14.5 |
17.0 |
2.8 |
5.0 |
10.0 |
0.15 |
| 5100 |
175.0 |
146.0 |
38.0 |
142.0 |
* |
180.5 |
179.5 |
162.0 |
17.7 |
20.5 |
3.0 |
6.3 |
10.0 |
0.15 |
| 5870 |
181.0 |
165.0 |
27.0 |
161.0 |
* |
185.0 |
184.0 |
176.5 |
12.0 |
14.5 |
2.7 |
4.0 |
10.0 |
0.15 |
| 0470 |
189.0 |
164.0 |
30.0 |
160.0 |
* |
193.5 |
192.5 |
179.0 |
14.5 |
17.0 |
2.8 |
5.0 |
10.0 |
0.15 |
| 5534 |
190.0 |
172.5 |
25.4 |
168.0 |
* |
192.7 |
191.8 |
188.0 |
12.7 |
14.3 |
2.3 |
2.8 |
10.0 |
0.15 |
| 5545 |
190.0 |
174.0 |
25.4 |
170.0 |
* |
192.7 |
191.8 |
188.0 |
12.7 |
14.3 |
2.3 |
2.8 |
10.0 |
0.15 |
| 3242 |
191.2 |
163.3 |
38.0 |
160.3 |
* |
196.8 |
195.9 |
178.9 |
18.4 |
20.3 |
3.7 |
6.3 |
10.0 |
0.15 |
| 3220 |
191.3 |
163.3 |
46.0 |
160.0 |
* |
196.8 |
195.9 |
178.9 |
18.4 |
24.1 |
3.7 |
6.3 |
10.0 |
0.15 |
| 5525 |
197.4 |
178.0 |
21.4 |
173.0 |
* |
202.2 |
201.9 |
196.0 |
9.4 |
10.6 |
1.2 |
3.0 |
10.0 |
0.15 |
| 5865 |
199.0 |
178.0 |
32.0 |
174.0 |
* |
203.6 |
202.4 |
190.0 |
14.5 |
16.0 |
3.0 |
5.0 |
10.0 |
0.15 |
| 0400 |
200.0 |
177.0 |
31.0 |
173.0 |
* |
204.5 |
203.4 |
191.0 |
14.5 |
17.0 |
3.1 |
5.0 |
10.0 |
0.15 |
| 5710 |
200.0 |
178.0 |
38.0 |
175.0 |
* |
210.6 |
209.6 |
192.0 |
19.0 |
21.0 |
3.0 |
4.0 |
10.0 |
0.15 |
| 5573 |
203.0 |
186.0 |
32.0 |
182.0 |
* |
204.1 |
202.9 |
190.5 |
14.5 |
16.0 |
3.0 |
5.0 |
10.0 |
0.15 |
| 5855 |
210.0 |
191.0 |
28.0 |
187.0 |
* |
214.0 |
213.0 |
203.0 |
12.5 |
14.5 |
2.8 |
5.0 |
10.0 |
0.15 |
| 3260 |
210.3 |
182.3 |
38.0 |
179.3 |
* |
215.4 |
214.4 |
197.5 |
18.4 |
20.3 |
3.7 |
6.3 |
10.0 |
0.15 |
| 3208 |
210.3 |
182.4 |
46.0 |
179.0 |
* |
215.4 |
214.4 |
197.5 |
18.4 |
24.1 |
3.7 |
6.3 |
10.0 |
0.15 |
| 5420 |
215.0 |
192.0 |
33.0 |
189.0 |
* |
220.8 |
219.8 |
207.0 |
16.5 |
18.5 |
3.0 |
4.0 |
10.0 |
0.15 |
| 3870 |
222.3 |
201.0 |
26.5 |
197.0 |
* |
224.9 |
224.1 |
217.9 |
11.8 |
14.2 |
2.9 |
2.8 |
10.0 |
0.15 |
| 5820 |
227.0 |
205.0 |
30.0 |
201.0 |
* |
231.5 |
230.5 |
219.0 |
14.5 |
17.0 |
2.8 |
5.0 |
10.0 |
0.15 |
| 5110 |
228.5 |
200.0 |
38.0 |
196.0 |
* |
233.5 |
232.5 |
216.0 |
18.0 |
21.0 |
3.0 |
6.3 |
10.0 |
0.15 |
| 5650 |
234.0 |
209.0 |
42.0 |
206.0 |
* |
242.6 |
241.6 |
224.0 |
19.5 |
22.5 |
3.0 |
4.0 |
10.0 |
0.15 |
| 5880 |
239.5 |
220.0 |
31.8 |
215.0 |
* |
244.0 |
243.0 |
232.0 |
14.5 |
16.5 |
2.8 |
5.0 |
10.0 |
0.15 |
| 3344 |
251.4 |
223.5 |
38.0 |
220.5 |
* |
256.6 |
255.7 |
238.7 |
18.4 |
20.3 |
3.7 |
6.3 |
10.0 |
0.15 |
| 3319 |
251.5 |
223.5 |
46.0 |
220.0 |
* |
256.6 |
255.7 |
238.7 |
18.4 |
24.1 |
3.7 |
6.3 |
10.0 |
0.15 |
| 4830 |
252.0 |
225.0 |
38.0 |
220.0 |
* |
258.0 |
257.0 |
241.0 |
19.0 |
21.0 |
3.0 |
4.0 |
10.0 |
0.20 |
| 3860 |
259.6 |
231.6 |
38.0 |
228.0 |
* |
264.7 |
263.8 |
247.0 |
18.4 |
20.5 |
3.7 |
6.3 |
10.0 |
0.20 |
| 0415 |
262.8 |
240.0 |
38.0 |
236.0 |
* |
273.5 |
272.5 |
255.5 |
18.0 |
20.5 |
3.1 |
6.5 |
10.0 |
0.20 |
| 4860 |
268.0 |
239.0 |
40.0 |
234.0 |
* |
274.2 |
273.2 |
257.0 |
20.5 |
22.5 |
3.0 |
4.0 |
10.0 |
0.20 |
| 5720 |
276.0 |
250.0 |
44.0 |
247.0 |
* |
284.6 |
283.6 |
266.0 |
20.5 |
24.0 |
3.0 |
4.0 |
10.0 |
0.20 |
| 5810 |
280.0 |
252.0 |
38.0 |
248.0 |
* |
285.5 |
284.5 |
265.0 |
18.0 |
20.0 |
3.1 |
6.5 |
10.0 |
0.20 |
| 3518 |
292.8 |
264.9 |
38.0 |
261.9 |
* |
297.8 |
297.0 |
280.0 |
18.4 |
20.3 |
3.7 |
6.3 |
10.0 |
0.20 |
| 3525 |
292.8 |
265.0 |
46.0 |
261.0 |
* |
297.8 |
297.0 |
280.0 |
18.4 |
24.1 |
3.7 |
6.3 |
10.0 |
0.20 |
| 5845 |
303.0 |
275.0 |
38.0 |
271.0 |
* |
308.0 |
307.0 |
290.0 |
18.0 |
20.5 |
3.1 |
6.5 |
10.0 |
0.20 |
| 3776 |
310.8 |
282.9 |
38.0 |
280.0 |
* |
316.3 |
315.4 |
298.4 |
18.4 |
20.3 |
3.7 |
6.3 |
10.0 |
0.20 |
| 5830 |
325.0 |
300.0 |
38.0 |
296.0 |
* |
335.5 |
334.5 |
318.0 |
17.5 |
20.5 |
3.1 |
6.5 |
10.0 |
0.20 |
| 3779 |
328.0 |
301.0 |
38.0 |
297.0 |
* |
333.0 |
332.1 |
315.1 |
18.4 |
20.3 |
3.7 |
6.3 |
10.0 |
0.20 |
| 4890 |
328.0 |
300.0 |
40.0 |
295.0 |
* |
333.0 |
332.0 |
315.0 |
18.5 |
21.0 |
3.0 |
4.0 |
10.0 |
0.20 |
| 3621 |
346.4 |
318.5 |
38.0 |
315.5 |
* |
351.6 |
350.7 |
333.7 |
18.4 |
20.3 |
3.7 |
6.3 |
10.0 |
0.20 |
| 3618 |
346.5 |
319.0 |
46.0 |
315.0 |
* |
351.6 |
350.7 |
333.7 |
18.4 |
24.1 |
3.7 |
6.3 |
10.0 |
0.20 |
| 4920 |
369.0 |
339.5 |
40.0 |
335.0 |
* |
374.8 |
373.8 |
358.0 |
19.0 |
21.5 |
3.0 |
4.0 |
10.0 |
0.20 |
| 5860 |
375.0 |
350.0 |
38.0 |
345.0 |
* |
385.5 |
384.5 |
368.0 |
17.5 |
20.5 |
3.1 |
6.5 |
10.0 |
0.20 |
| 3800 |
394.4 |
366.5 |
38.0 |
363.5 |
* |
399.5 |
398.6 |
381.7 |
18.4 |
20.3 |
3.7 |
6.3 |
10.0 |
0.25 |
| 3980 |
394.5 |
366.5 |
48.0 |
363.5 |
* |
399.5 |
398.6 |
381.7 |
18.4 |
24.1 |
3.7 |
6.3 |
10.0 |
0.25 |
| 5895 |
415.0 |
387.0 |
38.0 |
382.0 |
* |
420.3 |
419.3 |
402.0 |
17.5 |
20.5 |
3.0 |
6.5 |
10.0 |
0.25 |
| 5760 |
454.0 |
428.5 |
37.0 |
425.0 |
* |
462.3 |
461.3 |
444.6 |
18.5 |
21.0 |
3.0 |
4.0 |
10.0 |
0.25 |
| 3810 |
457.2 |
429.2 |
38.0 |
426.2 |
* |
462.3 |
461.4 |
444.4 |
18.4 |
20.3 |
3.7 |
6.3 |
10.0 |
0.25 |
| 0460 |
500.0 |
470.0 |
50.0 |
465.0 |
* |
512.2 |
510.2 |
490.0 |
23.5 |
25.5 |
4.0 |
6.0 |
10.0 |
0.25 |
| 3820 |
533.4 |
505.4 |
44.0 |
502.4 |
* |
538.5 |
537.6 |
520.6 |
21.3 |
26.2 |
3.7 |
6.3 |
10.0 |
0.25 |
| 0420 |
608.0 |
580.0 |
43.6 |
575.5 |
* |
613.0 |
611.0 |
596.0 |
19.7 |
21.7 |
4.0 |
6.5 |
10.0 |
0.25 |
| 0455 |
623.0 |
591.0 |
50.0 |
586.0 |
* |
635.2 |
633.2 |
613.0 |
23.5 |
25.5 |
4.0 |
6.0 |
10.0 |
0.40 |
| 3875 |
700.0 |
667.0 |
44.0 |
660.0 |
* |
705.6 |
704.6 |
687.6 |
18.4 |
23.4 |
3.7 |
6.3 |
10.0 |
0.25 |
| 0430 |
750.0 |
710.0 |
50.0 |
700.0 |
* |
762.2 |
760.2 |
740.0 |
23.5 |
25.5 |
4.0 |
6.0 |
10.0 |
0.40 |
| 5835 |
886.0 |
830.0 |
80.0 |
815.0 |
* |
891.6 |
890.6 |
860.0 |
34.5 |
39.5 |
4.4 |
10.0 |
10.0 |
0.40 |
注明：
1、尺寸列标中“Tol+-”是沟槽尺寸的公差。
2、尺寸列表中“M”值大小取决于实际的应用。 |
公司简介
