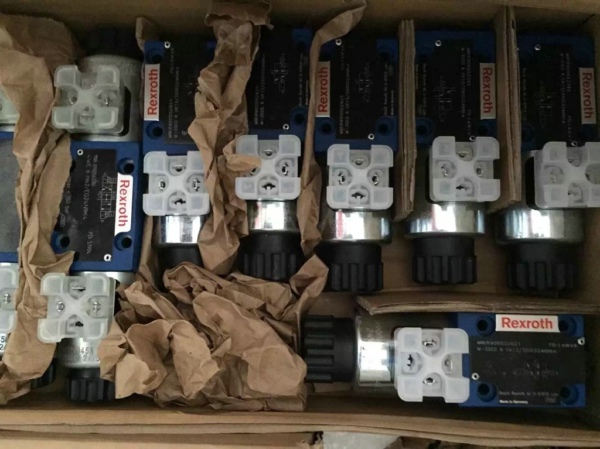

Rexroth 4WEH series electro-hydraulic valve

Model H-4WEH
Directional spool valve, pilot operated, electro-hydraulic trigger
Specifications 10-102
Wet pin AC or DC solenoids
Spring and / or pressure bias
Spring in (size 10)
Or pressure in spring (16, 25 and 32 specifications)
Optional auxiliary operating device
Mounting surface according to DIN 24340 A-type and ISO 4401
Electrical connection can be wired or centralized wiring alone
Switching time can be adjusted
The main valve stroke limitation, optional (RE 24830)
Travel restrictions and / or end position indication (size 16, 25 and 32), optional (RE 24830)
By sensing the position switch positioning, optional (RE 24830)
Size 16, 25 and 32 of the main valve P port pre-load valve
Other technical advisory can contact the company detailed advice!

Advantage Supply Model example
Product Specifications Model Name Order No.
1 proportional directional valve 0811404832 4WRBA10E64-2X / G24N9Z4 / M
2 proportional directional valves 0811404116 4WRBA6W30-2X / G24N9Z4 / M
4 Proportional pressure R901323921 3DREP 6 A-2X / 45EG24NJK31 / V
5 proportional directional valve R900944121 4WRE6W16-2X / G24K4 / V + Z4
6 proportional directional valve R900948691 4WRZ10E85-7X / 6EG24N9K4 / V
8 proportional amplifier R901002090 VT-VSPA2-1-2X / V0 / T1
9 proportional amplifier R900979887 VT-VRPA2-1-1X / V0 / T1
10 proportional amplifier 0811405127 VT-MSPA1-525-10 / V0
7 R900907114 4WREE6E32-2X / G24K31 / A1V + Z31
11 proportional amplifier 0 811405126 VT-MSPA1-508-10 / V0
12 proportional amplifier 0 811405106 VT-MSPA2-525-10 / V0
13 soft-switching solenoid valve R900567997 4WE 6 J73-6X / EG24N9K4 / A12
